Connecting the Omron SC-150 Scale to Allie on Android

Last updated: October 16, 2026

Background

Allie features Bluetooth integration with the Omron SC-150 commercial weight scale. This guide provides best practices to ensure seamless transfer of weight data from the scale to the Allie Android application.

In order to pair the device, please make sure you have done the following during the installation process, completing all of the following:

  • Allowed Allie to turn Bluetooth on

  • Given Allie access to ""Location", Nearby Devices", and "Physical Activity"

  • Confirmed that Bluetooth is turned on for your phone

For best results, we recommend making sure that you are using the most recent versions of Allie and that your phone's operating system is up to date. More information on checking your settings/updating Allie can be found here.

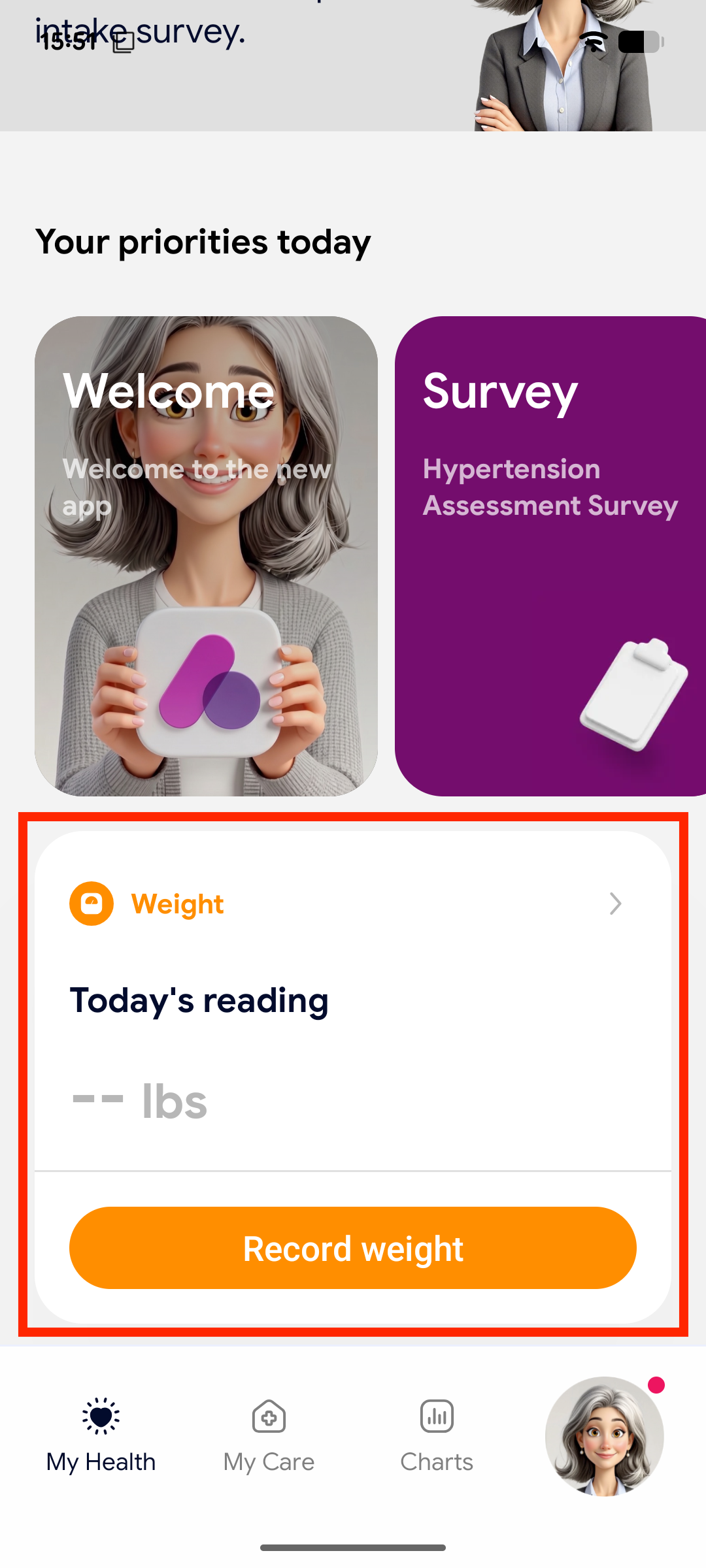

You will also need to make sure you see the weight widget under My Health in Allie.

If you do not see this, please call us creating a support ticket in Allie: My Care -> Settings -> Technical Support (recommended). You can also try to send us an email support@codexhealth.com.

Pairing Instructions

  1. Turn the scale over and insert the batteries into the battery compartment. If are already inserted, remove and re-insert them

    1. The scale display will quickly flash and then go blank - you may not see this

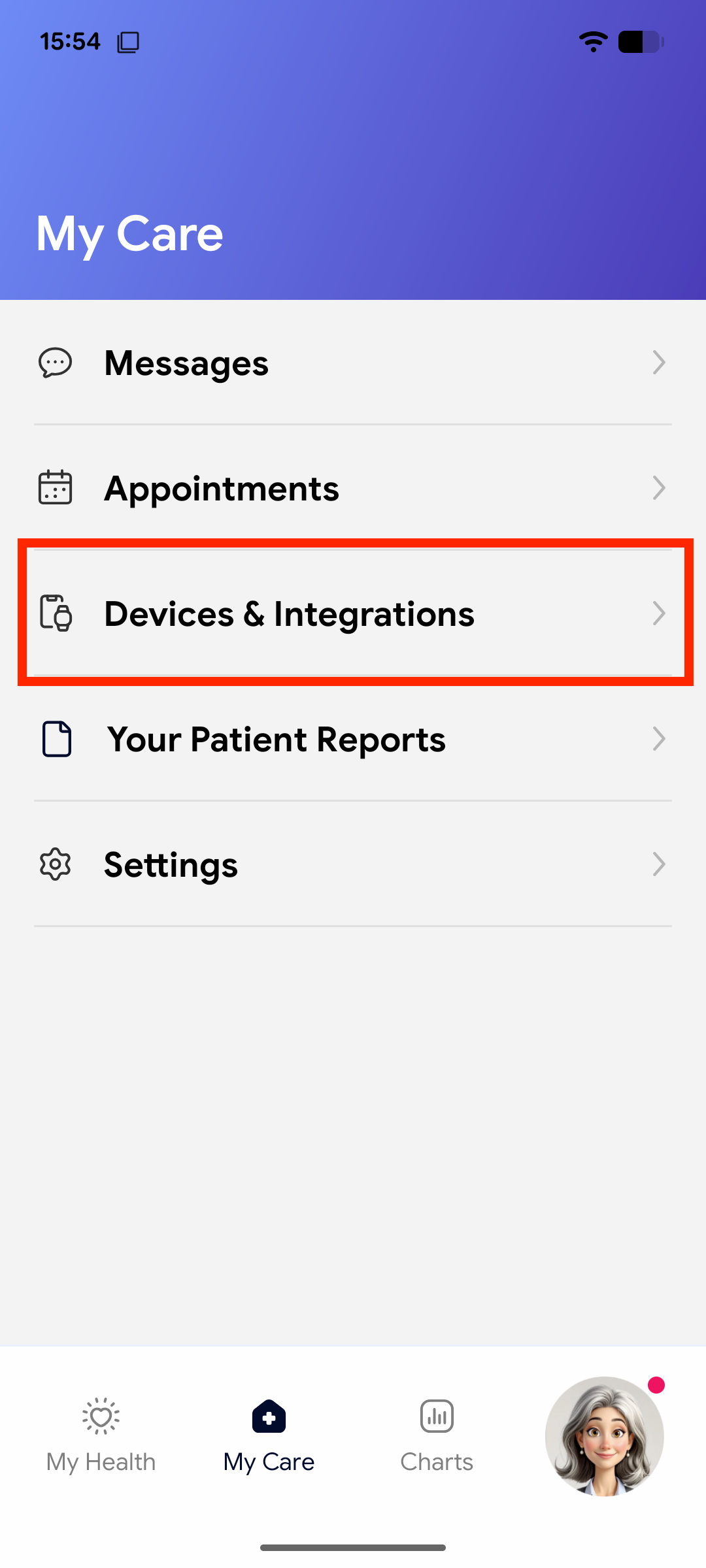

  2. Make sure the scale display is blank. In Allie, go to the My Care tab using the bottom navigation bar.

  3. Select Devices & Integrations

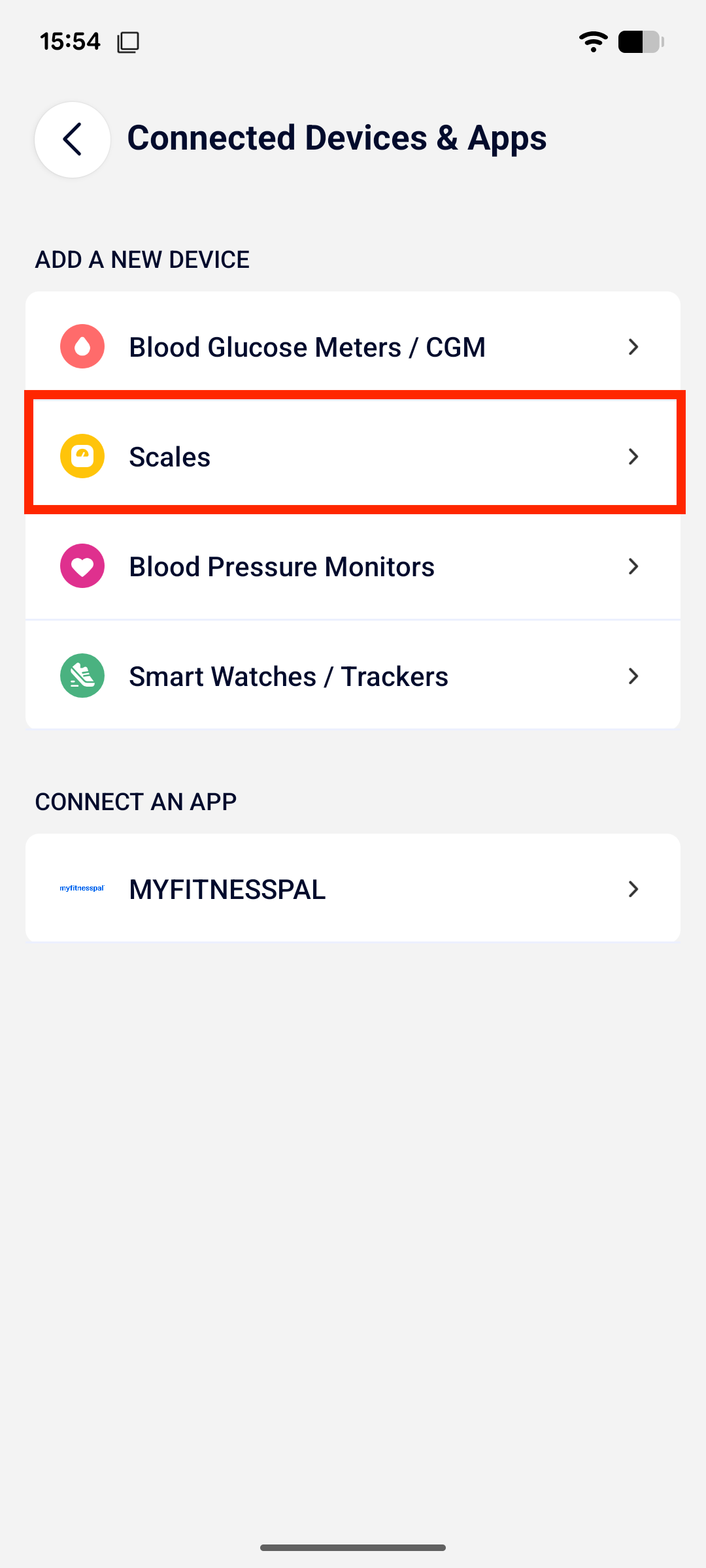

  4. And then choose Scales

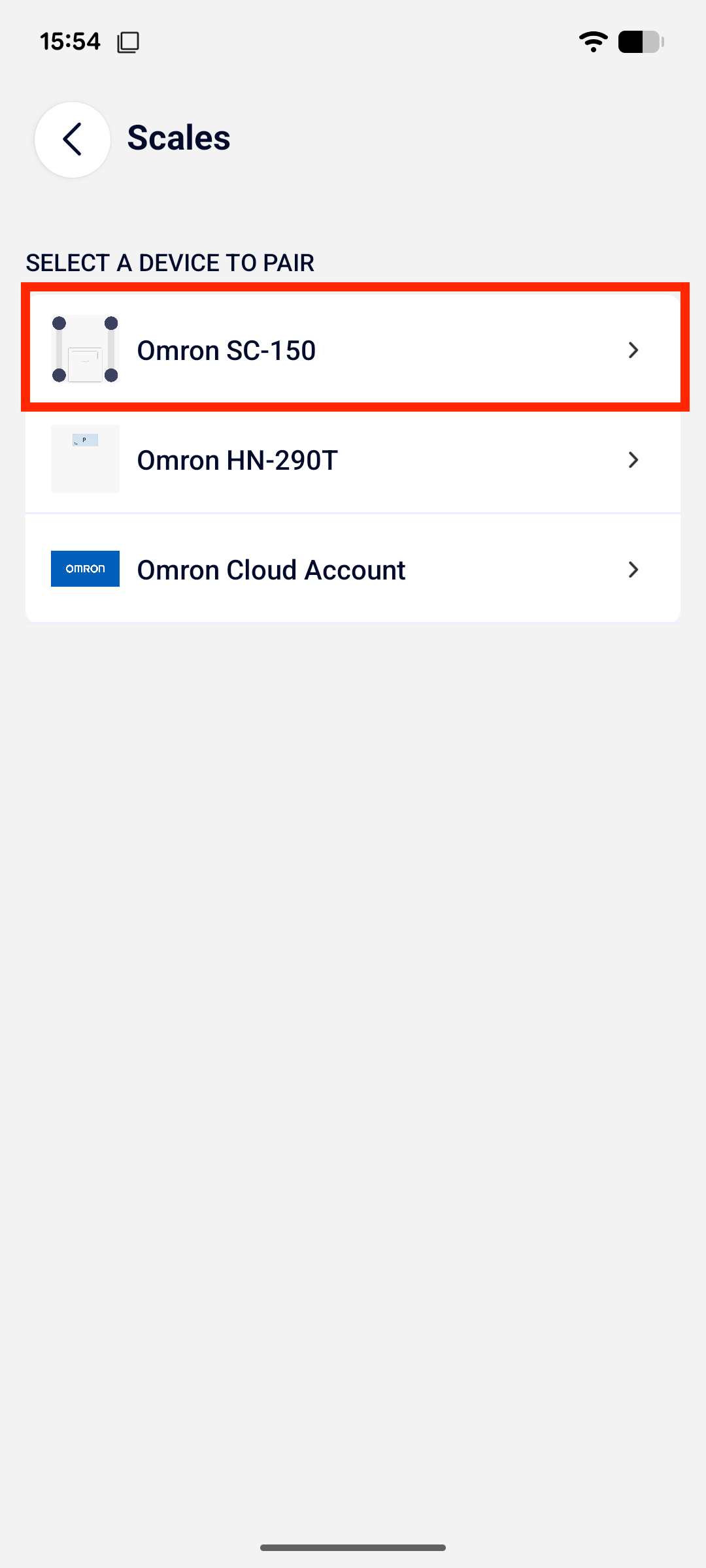

  5. Select the Omron SC-150

  6. This will take you to Step 1 - Insert 4 "AAA" batteries in the back of the scale.


  7. If you have not already inserted the batteries, do so now. The screen will quickly flash and then go blank. Tap "Continue" in Allie to be brought to Step 2 - Press the Bluetooth button for more than 2 seconds. The pairing symbol will flash on the display


  8. Locate the bluetooth pairing button on the scale. It is on the front side of the scale, near the display:


  9. Press and hold the pairing button on the scale until the "P" is flashing


  10. The scale is now in pairing mode. Tap "Continue" on Allie"


  11. You should then see a prompt on your phone to connect with the "BLESmart_xxxx" device. Select "Pair & connect" (depending on the model of your phone, the text may be slightly different).


  12. Confirm that you want to "Pair" with the scale


  13. The scale screen should also update and you should soon see several "o's" and the "OK" box. This indicates the scale has successfully paired


  14. Allie should then take you to the "Success" screen


This will return you to the Scales screen. If you have issues at any point in time with the pairing process, please start over from the beginning.

Please wait for the scale screen to go blank before proceeding with taking your weight.

How to Take a Weight Measurement

  1. Launch the Allie app

  2. Stand on the scale

  3. The display will fluctuate until it determines the weight. At this point it will flash three times.

  4. You should then see the Bluetooth icon below your weight measurement


    1. If you do not see the icon, make sure that Allie is open. If it has closed, open it, and the weight measurement should come through soon

  5. The reading will then be sent to Allie shortly afterwards (it may take a few seconds to synchronize).

If you take your weight but Allie is not currently open, the measurement may not show up in Allie. To address this, open up Allie and tap the Bluetooth button on the SC-150. This should send any recently saved readings from the scale to Allie.

For general troubleshooting, please see here.
